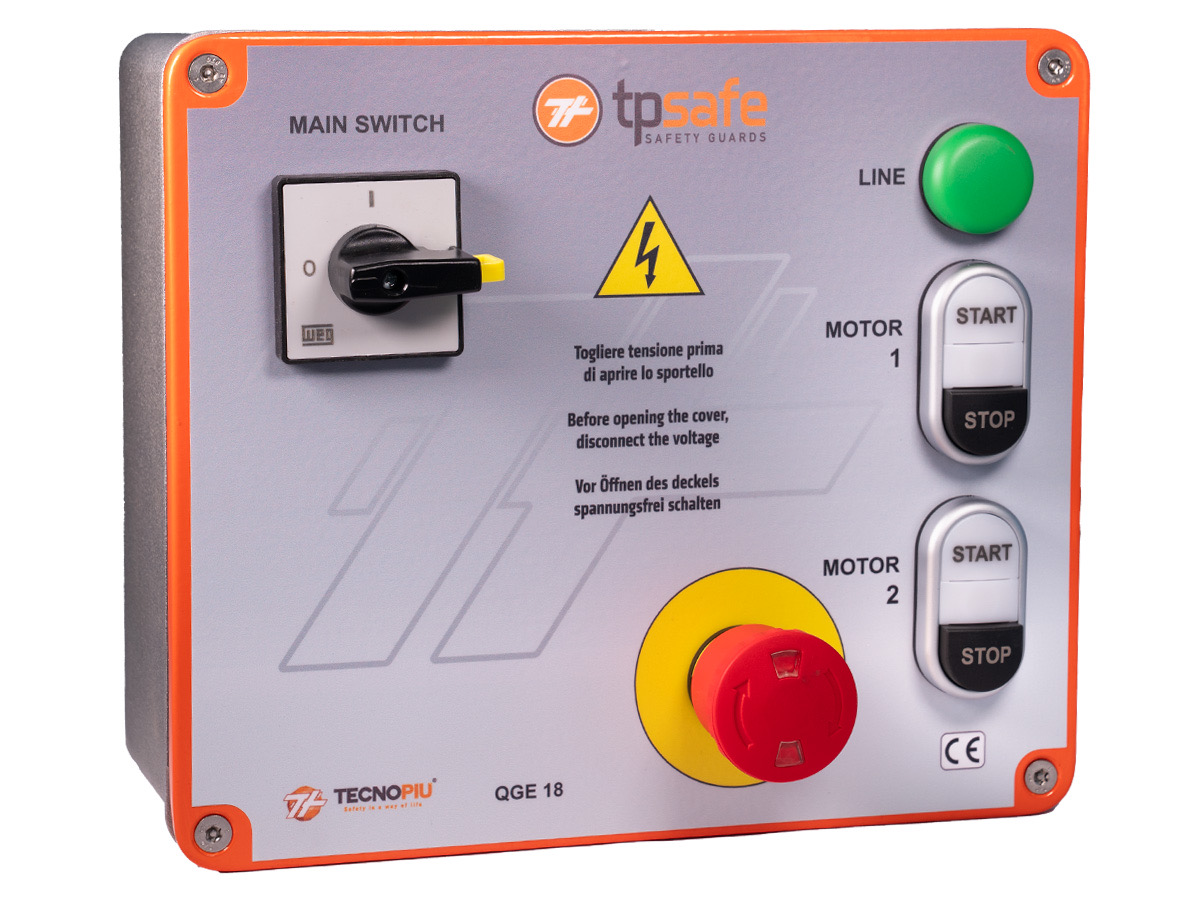

Code QGE 18
Kit for general-purpose machines, with a die-cast aluminium enclosure equipped with protection against short circuits and current overloads. Complete with a main switch designed for padlock locking, 2 contactors, 400/24 VAC transformer, 2 thermal relays, 2 fuses for auxiliary circuit protection, mushroom emergency stop button and dual start-stop push button, with mains power indicator light. Control panel for machines with a maximum total power consumption (M1+M2) = 9 kW.
BOX DIMENSIONS (W x H x D): 250x220x100mm
OPTIONAL: SQE 01 Bracket
IMPORTANT: When ordering, specify the maximum current consumption of the machine and auxiliary load, in Amperes (or kW), and the voltage.
